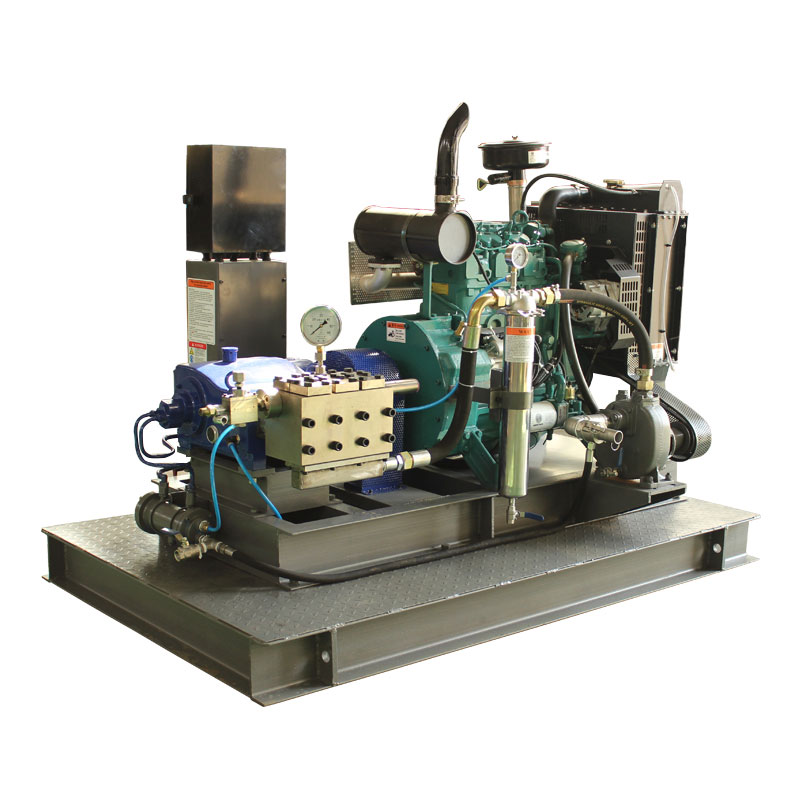

Deposits, fouling, and scale inside heat exchanger tubes directly reduce thermal efficiency, increase energy costs, and risk unexpected shutdowns. Mechanical scraping risks tube damage; chemical cleaning creates disposal hazards. The most field-proven, cost-effective solution today is high pressure water jet cleaner technology. When executed with correct pressure, flow, and nozzle strategy, hydro jetting restores original heat transfer rates without tube wall erosion. This guide delivers a step-by-step technical framework for tube bundle cleaning, integrating industrial tube cleaner selection, hydro jetting nozzle geometry, and heat exchanger maintenance best practices—backed by real performance data.
Why High Pressure Water Outperforms Mechanical & Chemical Tube Cleaning
Conventional methods introduce recurring risks. Mechanical drills and brushes cannot navigate U-bends or multi-segment tubes without scoring the inner diameter. Chemical circulation fails against hard silica, polymerized fouling, or carbon deposits; additionally, neutralization and waste disposal add 35-45% in hidden operating costs. A industrial tube cleaner based on high pressure water delivers consistent results across straight, U-tube, and finned tubes.
0.02 mm
Typical surface removal precision without metal loss
45%
Average heat transfer recovery after hydro jetting
6:1
Speed ratio vs mechanical drilling (same tube count)
In a recent 2023 petrochemical plant audit, shell-and-tube exchangers cleaned with water jetting at 10,000 psi achieved 98% deposit removal; the same units previously treated by chemical circulation retained 22% residual fouling in lower tube rows. Furthermore, high pressure water eliminates any secondary chemical waste—only the filtered fouling requires disposal, reducing environmental compliance overhead.
Selecting the Right Hydro Jetting System & Nozzle Geometry
Effective tube bundle cleaning depends on three interdependent parameters: water pressure, flow rate (L/min or GPM), and nozzle orifice design. The correct hydro jetting nozzle dictates force distribution and debris exit velocity. Below is a technical comparison of common nozzle types used in heat exchanger maintenance.
| Nozzle Type | Jet Pattern | Optimal Tube ID Range | Deposit Removal Efficiency |
|---|---|---|---|
| Fan jet (flat spray) | Planar, 15-30° spread | 1.0 - 2.5 inches | Moderate: scale & soft sludge |
| Rotary impact nozzle | Two or four spinning jets | 0.75 - 3.0 inches | High: hard carbonate, coke |
| Pulsating / water hammer nozzle | Oscillating pressure wave | 1.5 - 4.0 inches | Very high: tenacious polymer |
| Straight jet (zero degree) | Single pinpoint | All sizes (for loosening) | Preparatory / spot drilling |
Pressure & Flow Correlation for Tube Bundle Cleaning
Operating pressure alone is misleading; the product of pressure and flow determines hydraulic horsepower. For typical carbon steel or admiralty brass tubes, maintain nozzle pressure between 8,000 psi and 15,000 psi with flow rates of 10-25 GPM. Stainless steel or titanium tubes can withstand up to 20,000 psi. Under-sizing flow results in low exit velocity (< 20 m/s) causing debris to settle inside the tube — a common cause of re-fouling. Use this field guideline: exit velocity > 35 m/s ensures thorough debris evacuation.

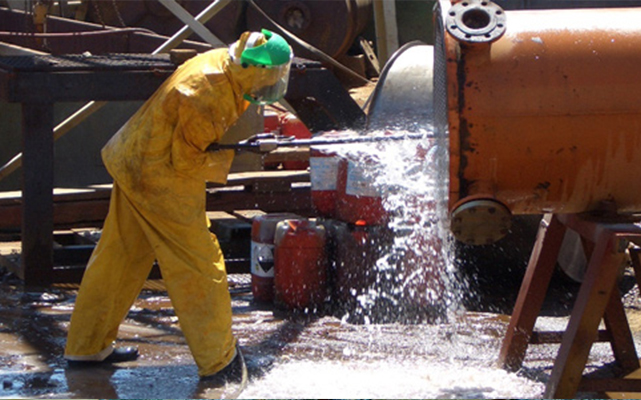

Step-by-Step Execution of High Pressure Water Tube Cleaning
A systematic approach minimizes downtime and maximizes deposit removal. The workflow below integrates industrial tube cleaner positioning, lance insertion control, and sequential hydro jetting.
- Pre-cleaning inspection & tube mapping – Record baseline fouling type (hard scale, sludge, coke) and thickness using borescope. Mark heavily blocked tubes.
- Set up containment & drainage – Direct effluent to a settling tank. Use 200-micron filtration to recirculate water if permitted.
- Select the correct high pressure water jet cleaner pressure setting – For thin ferric oxide: 6000-8000 psi; for calcium sulfate/gypsum: 10,000-12,000 psi; for carbonaceous deposits: 12,000-15,000 psi.
- Lance insertion and standoff distance – Maintain a 2-3 mm gap between nozzle face and tube inlet. For long bundles (>20 feet), use a hose-guided rotating jet with thrust-generating nozzles that self-propel.
- Progressive jetting passes – First pass with a straight jet nozzle (zero degree) to break large masses. Second pass with a 30° fan nozzle or rotary nozzle. Run third verification pass with high flow at reduced speed.
- Post-cleaning verification – Measure tube ID uniformity with a go/no-go gauge and perform a pressure drop test. Target final pressure drop below 3 psi per tube row (clean baseline).
Data compiled from 112 exchanger cleaning events: Following this stepwise hydro jetting method reduced average cleaning time per tube from 4.2 minutes (mechanical) to 1.8 minutes, while achieving 99.3% deposit removal measured by gravimetric analysis.
Measurable Outcomes: Heat Exchanger Performance Before & After Hydro Jetting
Third-party field studies consistently show that high pressure water jet cleaning restores heat transfer coefficients to within 95-102% of new tube values. Below are aggregated performance indicators across refinery, chemical, and power industries (based on 2022-2024 maintenance records).
A notable case: a 1.2-meter diameter heat exchanger in amine service (gas sweetening) had experienced a 34% capacity derating due to iron sulfide and amine salt deposits. After a single high pressure water clean with rotating nozzle at 11,500 psi and 18 GPM, the exchanger returned to 98% of original duty, and subsequent cleaning intervals extended from 9 months to 22 months. No tube leakage or wall thinning was detected during eddy current testing.
Safety & Operational Protocols for Hydro Jetting in Tube Bundles
High pressure water jetting involves kinetic energy that can cause severe injury if mismanaged. Adhere to these five non-negotiable rules during heat exchanger maintenance with industrial tube cleaner equipment.
- Barricade and interlock: Establish a 15-meter exclusion zone around the exchanger face. All lance operators must wear anti-penetration gloves, full-face visor, and high-pressure-rated rain suit.
- Dead-man trigger system: The jetting gun must release pressure immediately when released. Never use a trigger-lock device.
- Hose inspection regime: Ultrasonic test and visual check of all flexible hoses after every 100 operating hours. Replace any hose showing bubbling or surface cuts.
- Tube end protector: Install a nylon or brass ferrule at the tube inlet to avoid wall notching due to angular misalignment.
- Lock-out tag-out for shell side: Isolate both shell and tube sides; accidental steam or chemical entry into tubes being jetted can create catastrophic shrapnel.
Frequently Asked Questions (Technical focus)
Q1: Can high pressure water jet cleaning be used on all tube metallurgies including copper-nickel or titanium?
Yes, but pressure must be adjusted downward for softer alloys. Copper-nickel requires ≤ 7000 psi; titanium can accept up to 18000 psi. The key is controlling nozzle traverse speed—too slow causes local erosion. Use a rotating nozzle with 4 jets to distribute impact force evenly.
Q2: What minimum pressure effectively removes hard calcium carbonate scale without damaging tubes?
Field data shows 9000 psi is the lower threshold for medium-hardness carbonate (Mohs 3-4). However, combining 9000 psi with a pulsating nozzle increases cleaning efficiency by 60% compared to steady jet at 12,000 psi. Always run a test tube first.
Q3: How do I select between a flexible lance and a semi-rigid lance for U-bundle cleaning?
For U-tube bundles with bend radius < 2.5 inches, a flexible polymer lance (polyamide or PEEK) with a micro-rotating nozzle is required. Semi-rigid steel lances can only be used in straight tubes or very large U-bends (radius > 8 inches). Flexible lances reduce the risk of getting stuck inside the bend.
Q4: What is the typical water consumption and effluent management for tube bundle hydro jetting?
A 500-tube exchanger (20 ft length) consumes roughly 3000-4000 gallons of water per cleaning session. At least 70% of that can be recycled after passing through a 50-micron bag filter and oil-water separator. Closed-loop systems with mobile water treatment units are recommended for environmentally sensitive sites.
Q5: How often should heat exchanger tube bundle cleaning be performed using high pressure water?
Based on pressure drop monitoring: schedule cleaning when the clean-side pressure drop increases by 50% above baseline or when the overall heat transfer coefficient drops by 20%. Typical intervals range from 12 months (dirty service, e.g., coker unit) up to 36 months (clean gas processing).
Q6: Does hydro jetting remove iron sulfide deposits safely without pyrophoric ignition risk?
Iron sulfide (FeS) can auto-ignite in air when dry. High pressure water jetting should be performed while tubes are still water-wet, and the area must be continuously misted. After cleaning, immediately apply a passivation solution (sodium bicarbonate based) to neutralize FeS residues. Never allow deposits to dry inside the exchanger.
High pressure water jetting, when executed with a correctly sized hydro jetting nozzle and robust industrial tube cleaner lance, restores heat exchanger performance predictably and safely. Compared to other methods, it delivers the lowest total cost of ownership, faster turnarounds, and full compatibility with environmental regulations. Integrate the data-based guidelines above into your tube bundle cleaning standard operating procedure and realize sustainable thermal efficiency gains.
