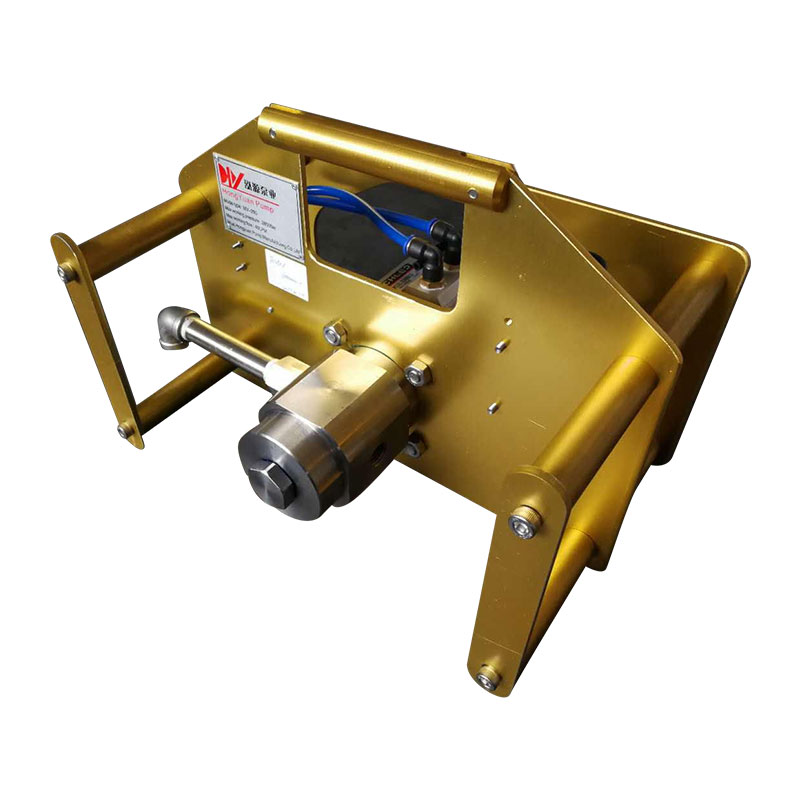

The Mechanics of High-Velocity Hydraulic Orifices
The performance of any high-pressure cleaning system depends on the energy conversion that happens inside the internal chamber of the jetting assembly. Water enters the inlet connection at low velocity and high pressure. As it moves through restricted internal channels toward the precise micro-orifices, the potential energy transforms rapidly. The pressure drops significantly while the velocity increases toward supersonic speeds. This rapid change creates a focused impact zone that can break apart solid material structures without needing mechanical scrapers or harsh chemical additives.
The distribution of force within a pipeline depends on three main factors: the impingement angle, the standoff distance from the target material, and the total volumetric fluid flow. Rear-facing jets typically feature angles ranging from fifteen to forty-five degrees relative to the pipe centerline. Narrower angles maximize forward thrust, allowing the assembly to pull heavy hoses over long distances and navigate steep grade changes. Conversely, wider angles provide superior wall-scouring action but reduce propulsive force, making them ideal for thorough cleaning once the tool has reached its target position.
In addition to jet angles, the internal geometry of the nozzle body plays a crucial role in minimizing fluid turbulence. Smooth, polished internal channels ensure that water enters the orifice inserts in a laminar flow state. If the internal paths are poorly machined, the resulting turbulent flow causes the water jet to disperse into a fine mist immediately upon exiting the nozzle, which severely reduces its hitting force and cutting efficiency.
Orifice Design and Material Composition
Because high-velocity water streams cause severe wear on internal surfaces, material selection directly affects the operational life of the tool. Standard nozzle components often use hardened stainless steel inserts for entry-level tasks or short-duration jobs. However, when working with recycled water or water containing fine silt and particulate matter, stainless steel orifices degrade quickly, widening the opening and distorting the jet stream pattern, which drops the overall system operating pressure.
To prevent early wear, heavy-duty industrial systems use precision inserts made from tungsten carbide, ceramic, or synthetic sapphire. Ceramic inserts offer an excellent balance of cost and durability, resisting abrasion from sand and fine grit well. Sapphire and ruby inserts provide the longest operational life under extreme pressures, maintaining their exact internal shape even during continuous, multi-shift industrial cleaning projects.
The physical profile of the orifice insert also affects the quality of the jet stream. Conical entry designs guide the water into a tight, cohesive stream, while straight-bored configurations are typically used where high flow volume is more critical than a concentrated cutting stream. Matching the insert material and shape to the specific water quality and job requirements prevents early tool failure and ensures consistent cleaning performance.
Comprehensive Taxonomy of Sewer Jetting Nozzles
Municipal drainage networks and mainlines require a variety of tool configurations to clear different types of blockages. Standard pipeline maintenance focuses on moving settled sludge, sand, and grease downstream toward collection manholes. To do this efficiently, operators use a range of hydro jetting nozzles types that are classified by their internal design, jet angles, and rotational capabilities.
Fixed nozzle configurations provide a reliable, uniform pattern where all orifices remain stationary relative to the tool body. These are best suited for long straight runs, steep vertical climbs, and initial attempts to pierce tight blockages. In contrast, dynamic rotating assemblies allow parts of the nozzle head to spin under hydraulic force, creating a continuous cutting or washing action across the entire inner surface of the pipeline.
Choosing between fixed and rotating tools depends heavily on the specific target material. Fixed nozzles excel at direct pushing and bulk material movement, while rotating options are far more effective at removing stubborn materials attached to the pipe walls, such as scale, grease coatings, and small root intrusions.
Designed with tight, aggressive rear angles for maximum tractive power and a sharp forward jet to pierce through compact soil, ice blockages, or hardened grease layers.
Features wide rear jet angles to maximize coverage against the pipe walls, facilitating efficient removal of loose sand, gravel, and residual debris during structural maintenance.
Employs high-velocity rotational streams focused directly on the pipe surface to shatter calcified mineral deposits and scale build-up.
The Role of Rotating Sewer Nozzles
When clearing complex fats, heavy oils, and grease deposits alongside hard mineral scaling, stationary jet patterns can leave uncleaned streaks along the pipe interior. To solve this problem, technicians deploy rotating sewer nozzles, which spin under hydraulic pressure to provide complete 360-degree coverage of the pipe walls. The rotational speed is regulated internally by centrifugal braking mechanisms or thick viscous fluid delays, ensuring the water streams deliver steady cleaning power instead of spinning out of control.
Controlled rotation ensures the water jets maintain sufficient dwell time on the pipe surface, allowing them to systematically peel away hardened layers of buildup. These dynamic tools are especially valuable for preparing old cast iron or clay lines before trenchless structural lining work, where a completely clean surface is necessary for the new epoxy liners to bond correctly to the host pipe.
Additionally, the smooth movement of regulated rotating tools reduces the mechanical vibration transferred to the jetting hose. This reduction in vibration extends hose life and helps prevent operator fatigue during long field shifts, while ensuring consistent cleaning results throughout the entire length of the pipe run.
Specialized Configurations for Severe Blockages
Certain structural failures and environmental conditions introduce severe blockages that standard flushing heads cannot clear. For example, mature tree roots often enter vitrified clay or concrete pipe joints, growing into dense root masses that catch solid waste and cause complete structural backups. Clearing these difficult lines requires heavy-duty mechanical cutting heads driven by hydraulic force.
A specialized root cutting jet nozzle solves this issue by combining sharp mechanical cutting rings, chains, or high-torque turbine blades with high-pressure water jets. The rear-facing propulsion jets drive the tool forward into the root mass, while the internal turbine spins the chains or blades at high speeds, cutting through tough root fibers directly at the joint connection points.
Using chain scraper assemblies requires careful adjustment by the operator. The chain lengths must match the inner diameter of the pipeline exactly; if the chains are too short, they will miss the roots along the pipe walls, and if they are too long, they can hit the pipe surface with too much force, causing severe structural damage to older or fragile lines.
Advanced Cleaning Performance with the Warthog Jet Nozzle
For demanding municipal mainlines and challenging industrial conduits, the controlled-rotation warthog jet nozzle represents a highly engineered industry standard. This specialized tool uses an internal viscous fluid governor to manage its rotation speed, ensuring the water jets maintain maximum cutting force against the pipe wall even when faced with changes in operating pressure or flow. This controlled speed prevents the tool from spinning erratically when encountering tough obstructions.
By keeping the rotation slow and stable, the water streams deliver concentrated energy to clear grease, roots, and hard deposits. This efficiency reduces water consumption and shortens overall run time compared to uncontrolled spinning tips, making it an indispensable tool for contractors maintaining municipal sewer infrastructure.
The internal engineering of these controlled-rotation tools also features durable high-pressure seal kits that prevent water from leaking into the fluid governor chamber. Regular maintenance of these seals ensures consistent rotation speeds and protects the internal components from premature wear, allowing the tool to perform reliably in harsh field environments.
Technical Evaluation and Nozzle Selection Framework
Choosing the right tool requires matching the nozzle's total physical orifice area with the specific output performance of the high-pressure pump. A mismatch can compromise performance: if the total orifice area is too large, system pressure drops, rendering the jet stream ineffective. Conversely, if the orifice area is too tight, it chokes the pump, forcing excess water through the pressure relief valve, which generates heat and causes premature equipment wear.
Operators must consult structured penetrator nozzle specs to ensure proper system balance. These technical specifications outline the precise flow coefficients, minimum and maximum pressure tolerances, and specific weight configurations required to maintain stability inside the pipe run.
In addition to pressure and flow matching, the physical weight and shape of the nozzle must be considered relative to the pipe material and condition. Heavy, wedge-shaped nozzles are excellent for bottom-riding silt removal in large lines, while lightweight, round-nosed models are better suited for navigating tight bends and sweeps in residential or commercial plumbing configurations.
| Nozzle Classification | Optimal Pipe Diameter | Pressure Range (PSI) | Primary Target Material |
|---|---|---|---|
| Standard Penetrator | 3 to 8 Inches | 2,000 - 4,000 | Silt, Mud, Loose Soil |
| Controlled Rotary | 4 to 18 Inches | 3,500 - 5,000 | Hard Grease, Light Roots |
| Root Cutter Assembly | 6 to 24 Inches | 3,000 - 4,500 | Dense Tap Roots, Heavy Scale |
| High-Flow Flusher | 8 to 36 Inches | 1,500 - 3,000 | Sand Beds, Loose Gravel |
Deploying Descaling Jetter Nozzles
To remove calcified mineral deposits, scale buildup, and chemical encrustations, operators use high-impact descaling jetter nozzles. These specialized tools combine high-pressure rear striking jets with offset side jets to create an uneven vibration pattern. This physical vibration, working alongside the hydraulic impact, cracks the brittle mineral scale so the trailing water streams can flush the broken pieces out of the line.
Using these descaling configurations requires careful handling to prevent pipe damage. In fragile conduits, such as old clay or thin-walled PVC pipes, excessive impact or prolonged dwell time can crack or puncture the pipe wall. Operators must manage pressure and feed rates carefully, matching the line's structural condition with the appropriate tool specifications.
Additionally, after performing an intensive descaling operation, it is recommended to conduct a post-cleaning video camera inspection. This step verifies that all scale has been completely removed and ensures that no structural damage occurred during the cleaning process, providing a clear record of the pipeline's restored condition.
Operational Physics: Flow vs. Pressure Dynamics
Effective hydro jetting relies on balancing flow rate and operating pressure. A common misunderstanding is that higher pressure always delivers better cleaning results. In practice, pressure provides the force needed to pierce and break up hard materials, while flow rate provides the volume required to carry those materials down the pipe line.
For example, clearing a blockage composed of solid mineral deposits requires a high-pressure, low-flow configuration to fracture the hard structure. Conversely, removing loose sand beds or gravel accumulations from a large-diameter municipal storm sewer requires a high-flow, low-pressure approach. Using high pressure in a large line without sufficient water volume will simply cut narrow holes through the debris without flushing it away.
Understanding this relationship allows fleet managers to correctly configure their equipment for different jobs. A service truck equipped with a high-flow, medium-pressure pump can clean large storm and sanitary mainlines efficiently, while a smaller utility vehicle with a high-pressure, low-flow setup is better suited for clearing grease and ice blockages in smaller commercial lines.
Field Rule of Thumb: Always prioritize flow volume for line cleaning and material extraction tasks. Reserve extreme operating pressures for piercing total blockages, cutting dense root intrusions, or removing hard calcified scale from pipe walls.
Optimizing Hose Selection and Reducing Pressure Drop
The choice of jetting hose directly impacts the pressure delivered to the tool head. As water travels through the hose, friction against the inner walls causes a steady drop in pressure. This friction loss increases with longer hose lengths and smaller hose diameters. Using a small hose on a high-flow pump will waste significant energy as heat before the water ever reaches the line.
Operators can minimize these performance losses by selecting a hose with a smooth thermoplastic inner core and matching its diameter to the target flow rate. Regular inspections are also essential: any external scoring, kinks, or damaged fittings can compromise safety and lead to sudden pressure drops, reducing the cleaning efficiency of the connected equipment.
Proper hose management also includes using appropriate reel guides and corner rollers to protect the hose from sharp edges at the manhole entrance. Preventing external scuffing and abrasions extends the life of the hose assembly, ensures safe operation under full working pressure, and maintains maximum hydraulic power at the nozzle head.
Industrial Maintenance and Orifice Care Protocols
Maintaining high performance requires a strict inspection routine for all jetting components. Fine mineral particles suspended in the water supply act as an abrasive, gradually eroding the precise geometry of the nozzle orifices over time. Even slight changes in orifice shape can distort the water streams, reducing cutting power and destabilizing the tool inside the line.
- Daily Cleaning: Remove the nozzle from the hose after each shift and clean the internal sediment chamber. Use fine wire probes to clear any small debris caught in the individual orifices.
- Orifice Verification: Check individual jet orifices regularly using specialized plug gauges to identify any widening or oval distortion early.
- Lubricant Maintenance: For dynamic and controlled-rotation heads, check and replenish internal viscous fluid levels according to the schedule to prevent high-speed spinning wear.
- Storage Care: Store all components in a padded container filled with light protective oil to prevent internal corrosion and face damage during transit.
Neglecting these maintenance steps can quickly lead to decreased field efficiency and increased operating costs. Worn or distorted orifices reduce the pressure of the water jets, forcing operators to run the pump at higher engine speeds, which increases fuel consumption and accelerates wear on the pump's internal valves and seals.
Safety Considerations and Operational Hazards
Operating high-pressure water equipment involves significant safety risks. The high-velocity streams produced by industrial jetting tips can cause severe injury if misdirected. Operators must never test or activate the pressure system while the tool head is outside the pipe line, as an unrestrained nozzle can whipping around erratically, creating a dangerous hazard on the job site.
To ensure safe operation, the nozzle assembly must be inserted at least three feet into the pipe run before pressurizing the system. Additionally, installing a physical anti-turnaround device is recommended when cleaning larger lines. This device prevents the tool from reversing direction inside the pipe and traveling back toward the operator, ensuring a safer and more controlled cleaning process.
All crew members working near the jetting site should wear appropriate personal protective equipment, including full-face shields, heavy-duty waterproof gloves, steel-toed boots, and safety vests. Establishing clear hand signal protocols between the reel operator and the pump controller further minimizes risks and ensures quick system shutdown in an emergency.
Frequently Asked Questions
Q1: How do forward-facing jets differ from rear-facing jets in terms of application?
Forward-facing jets are designed to pierce and break through total blockages, ice plugs, or solid obstructions directly ahead of the tool. Rear-facing jets serve two main functions: they provide the forward thrust needed to propel the assembly down the pipe, and they wash against the pipe walls to flush away loose material behind the tool head.
Q2: What causes a hydro jetting nozzle to lose its operating pressure during a job?
A loss in operating pressure is typically caused by either a clogged orifice or internal wear that has widened the jet openings. When debris blocks an orifice, it restricts flow and can cause the pump's safety valves to bypass. If the orifices have worn wider over time, they allow too much water to pass through, dropping the system pressure and reducing overall cleaning efficiency.
Q3: Why is fluid speed regulation important for rotating sewer nozzles?
Fluid speed regulation is essential because uncontrolled spinning allows the water streams to disperse into a fine mist, which lacks the impact force needed to cut through tough debris. Controlling the rotation speed keeps the jet streams concentrated, ensuring they deliver maximum impact force to systematically peel away hard scale and roots from the pipe walls.
Q4: How do operators select the right tools for cleaning fragile clay pipes?
Cleaning fragile clay lines requires using fixed or controlled-rotation heads with wide rear jet angles to distribute the water pressure evenly. High-impact descaling tools and heavy chain scrapers should be avoided, as their intense physical vibration can easily crack or shatter old, brittle pipe materials.
Q5: Can standard industrial tools run efficiently on recycled water systems?
Standard tools can run on recycled water provided they are fitted with durable tungsten carbide or ceramic orifices. Hardened stainless steel orifices degrade quickly when exposed to the fine sand and abrasive particles common in recycled water, which distorts the jet shape and reduces the tool's working life.
