High pressure hose

High-pressure hose

APPLICATION:
High-pressure rubber hoses and resin hoses are widely used for water jetting, cleaning, and fluid transmission.
CONTINUOUS-SERVICE
TEMPERATURE RANGE
+15°F / +275°F -10°C / +135°C
MAX OPERATING TEMPERATURE (Intermittent service) 300°F 150°C
RECOMMENDED FLUIDS:
Water, mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion

High Pressure Rubber Hose

APPLICATION:
High-pressure rubber hoses and resin hoses are widely used for water jetting, cleaning, and fluid transmission.
Recommended Fluids:
Water, mineral oils, vegetable and rape seed oils, glycol and polyglycol based oils, synthetic ester based oils, oils in aqueous emulsion

PREV：High pressure water pistol NEXT：Multi-function valve
Contact Us Now

Product Parameter Specifications Parameter

Parker (USA) high pressure hose
No. Model In.Dia Out.Dia Head Dia Working pressure Burst Pressure Min. Bend Radius mm Weight Fitting
mm mm mm Bar Bar mm Kg/m
1 HY-120-4P 4 7.7 11 1200 3000 75 0.1 M8X1.25
2 HY-140-4P 4 10 15 1400 3500 55 0.16 1/4NPT
3 HY-280-4P 4 12 18 2800 7000 140 0.29 3/8-24UNF-LH
4 HY-280-5P 5 13.2 30 2800 7000 200 0.47 3/8-24UNF-LH
5 HY-110-6P 6.3 11.5 16 1100 2750 110 0.2 M10X1
6 HY-164-6P 6.3 12.5 18 1640 4100 155 0.33 3/8-24UNF-LH
7 HY-250-8P 8 17.2 32 2500 6250 200 0.83 9/16-18UNF-LH
8 HY-280-8P 8 17.3 32 2800 7000 230 0.9 9/16-18UNF-LH
9 HY-160-10P 10 21.6 29 1600 4000 95 0.94 M24×1.5FO
10 HY-110-13P 13 23 34 1100 2750 100 0.8 M24×1.5FO
11 HY-140-13P 13 25 34 1400 3500 110 1.19 M24×1.5FO
12 HY-210-13P 13 26.7 36.5 2100 5250 290 1.64 M24×1.5FO
13 HY-100-20P 19.6 30 53.5 1000 2500 250 1.39 M36×2FO
14 HY-140-20P 19.6 33 53.5 1400 3500 350 2.1 M36×2FO
15 HY-160-20P 19.8 33.7 53.5 1600 4000 350 2.28 M36×2FO

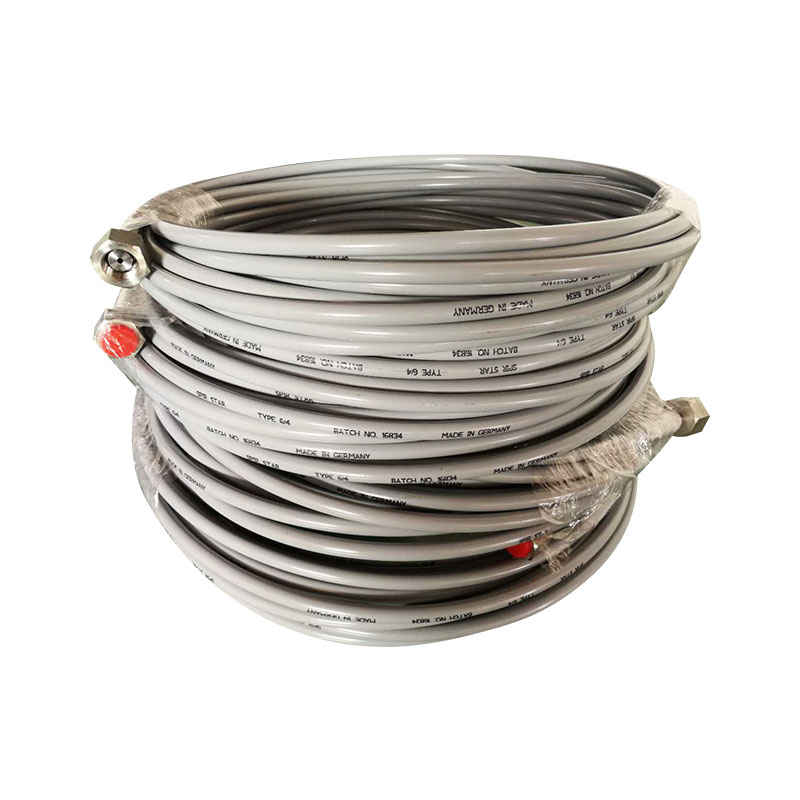

SPIR STAR(Germany) high-pressure hose
No. Model In.Dia Out.Dia Head Dia Working pressure Burst Pressure Min. Bend Radius mm Weight Fitting
mm mm mm Bar Bar mm Kg/m
1 HY-100-3S 3.4 6.9 8.9 1000 2500 60 0.072 M6×1
2 HY-120-4S 4 8 10.1 1200 3000 75 0.11 M8×1.25
3 HY-216-4S 4 10.3 14.7 2160 5400 130 0.234 3/8-24UNF-LH
4 HY-104-5S 5 9.4 12.9 1040 2600 95 0.125 M10×1
5 HY-180-5S 5 11.2 15 1800 4500 150 0.26 3/8-24UNF-LH
6 HY-280-5S 4.6 14.4 19.7 2800 7000 220 0.563 3/8-24UNF-LH
7 HY-100-6S 6.3 11.5 13.9 1000 2500 110 0.175 M10×1
8 HY-084-8S 8.1 13.3 17.8 840 2100 130 0.2 3/8-18NPTF
9 HY-210-8S 8 16.4 21.6 2100 5250 250 0.64 9/16-18UNF-LH



MANULI (ITALY) high-pressure rubber hose
No. Model In.Dia Out.Dia Head Dia Working pressure Burst Pressure Min. Bend Radius mm Weight Fitting
mm mm mm Bar Bar mm Kg/m
1 HY-075-13R 12.7 26.4 11 750 1875 220 0.905 M24×1.5
2 HY-110-13R 12.7 24.5 15 1100 2750 230 1.125 M24×1.5
3 HY-125-10R 10 20.4 18 1250 3125 230 0.815 M24×1.5
4 HY-145-13R 12.7 28.9 30 1450 3625 250 1.87 M24×1.5
5 HY-135-19R 19 35.4 16 1350 3375 280 2.57 M36×2
