Technological advantage
1. Inlet with diversion nozzle, the blow effect increases by 30%,and the aperture can be replaced
2. Suitable for all kinds of surface water blasting and water jet cleaning
3. Speed adjustable after preheating, the speed range (680-2000/rpm)
4. No Water Leakage jet rotary seal, up to 100% jet effect
5. Injection of low vibration, low noise, no air, external power
6. The nozzle protection plate can be replaced, and the nozzle head will not be damaged
7. easy to maintain, seal replacement time is only 3 minutes
9. can obtain the surface quality of Sa2.0 and Sa2.5 in coating pre-treatment
Application
1. Remove the coating from the big pipeline
2. Concrete surface blasting
3. grille cleaning in an auto factory
4. Chemical plant tanks surface descaling
5. Steel structure water blasting, paint removal, rust removal
6. Ship hull rust and paint removal
| Model | Pressure | Flow rate | Speed（rpm） | Weight | Diamension | Nozzle qty | Port size |
| HY-100 | 1000 bar | 14~30 L/M | 680-2000 | 1.5 KG | L=220mm φ75mm | 2-6 | 9/16UNF-18 |
| HY-150 | 1500 bar | 14~30 L/M | 680-2000 | 1.5 KG | L=220mm φ75mm | 2-6 | 9/16UNF-18 |
| HY-280 | 2800 bar | 14~30 L/M | 680-2000 | 1.5 KG | L=220mm φ75mm | 2-6 | 9/16UNF-18 |

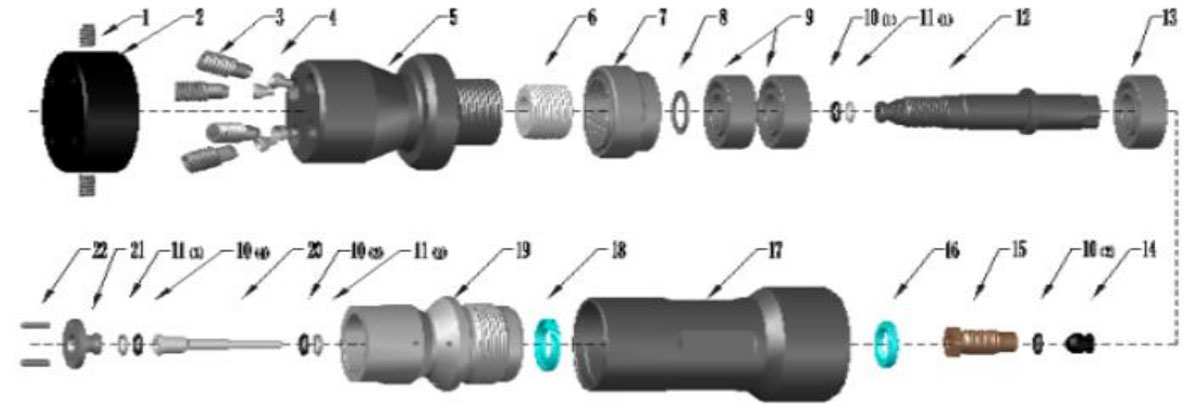

| Description | Qt’y | Drawing No | Description | Qt’y | Drawing No |
| M5 top filament | 2 | HY-F30U-1 | O ring | 1 | HY-F30U-10(2) |
| Protective cover | 1 | HY-F30U-2 | Hollow nut | 1 | HY-F30U-15 |
| M10 Gemstone | 4 | HY-F30U-3 | Oil seal (in front of shell) | 1 | HY-F30U-16 |
| M10 Gemstone nozzle steel pad | 4 | HY-F30U-4 | Out cover | 1 | HY-F30U-17 |
| Swivel head | 1 | HY-F30U-5 | Oil seal | 1 | HY-F30U-18 |
| Rotating head core | 1 | HY-F30U-6 | Inlet connection | 1 | HY-F30U-19 |
| Magnetic assembly | 1 | HY-F30U-7 | O ring | 1 | HY-F30U-10(2) |
| Shaft elastic ring | 1 | HY-F30U-8 | O ring | 1 | HY-F30U-10(3) |
| Angular contact bearing 7003 | 2 | HY-F30U-9 | Sealing rod | 1 | HY-F30U-20 |
| O ring | 1 | HY-F30U-10(1) | O ring | 1 | HY-F30U-10(4) |
| O ring | 1 | HY-F30U-11(1) | O ring | 1 | HY-F30U-11(3) |
| rotation axis | 1 | HY-F30U-12 | Stainless steel seal block | 1 | HY-F30U-21 |
| Ball bearing 6003 | 1 | HY-F30U-13 | ∅3×10 straight pin | 2 | HY-F30U-22 |
| High-pressure seal | 1 | HY-F30U-14 |
