WHY30000 high pressure plunger water pump

WHY30000 high-pressure pumps are built to operate at the continuous maximum duty stated in the performance parameters. Just compare the crankshaft speed, average plunger speed, plunger diameter, and power rating.

High Pressure Pump
Weight:approx.880 KG

Stationary unit with electric motor
Length: 2200 mm
Width: 1600 mm
Height: 1600 mm
Weight: 1800 kg

Stationary unit with diesel engine
Length: 3500 mm
Width: 2000 mm
Height: 2000 mm
Weight: 2200 kg

Features

Power ratings up to 300 kW
Horizontal 3-cylinder design
Wide variety of complementary ancillaries

Quality and reliability

The stainless steel pump head is free of alternating stress
Spring preloaded high-pressure sealing makes it a longer life
Solid ceramic plunger to ensure high strength and stable operation
An integrated lubricating oil and piston cooling system to improve the service life.
Built-in double gear reducer to make transmission balance higher efficiency
Special design of the crankcase magnetic filter
Crankcase forced lubrication system
An integrated ball-type liquid inlet valve design greatly improves the efficiency of fluid mechanics.
Computational fluid mechanics design for dynamic load to ensure the highest reliability under maximum duty working conditions.
The crankshaft is made of a high-strength forging process and is specially treated

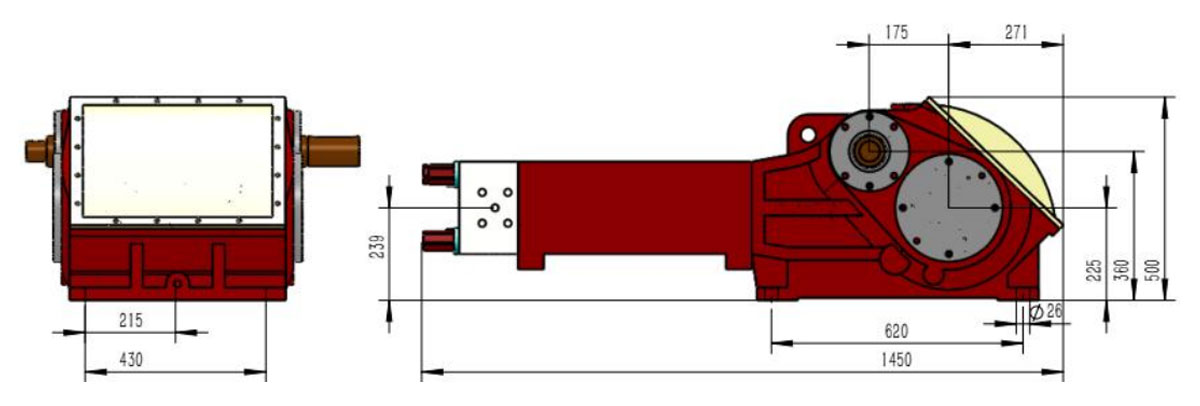

Main dimensions without accessories such as suction line, pressure regulator, etc.
Detailed dimensional drawings and weights are available on request
