WHY13200 diesel high pressure water pump

WHY13200 high-pressure pumps are built to operate at the continuous maximum duty stated in the performance parameters. Just compare the crankshaft speed, average plunger speed, plunger diameter, and power rating.

High Pressure Pump
Weight:approx.550 KG

Stationary unit with electric motor
Length: 2200 mm
Width: 1600 mm
Height: 1600 mm
Weight: 1800 kg

Stationary unit with diesel engine
Length: 2800 mm
Weight: 2000 mm
Height: 2000 mm
Weight: 2800 kg

Features

Power ratings up to 132 kW
Horizontal 3-cylinder design
Wide variety of complementary ancillaries

Quality and reliability

Stainless steel pump head is free of alternating stress
Spring preloaded high-pressure sealing makes ita  longer life
Solid solid ceramic plunger to ensure high strength and stable operation
An integrated lubricating oil and piston cooling system to improve the service life.
Built-in double gear reducer to make transmission balance higher efficiency
Special design of the crankcase magnetic filter
Crankcase forced lubrication system
An integrated ball-type liquid inlet valve design greatly improves the efficiency of fluid mechanics.
Computational fluid mechanics design for dynamic loads to ensure the highest reliability under maximum duty working conditions.
The crankshaft is made of a high-strength forging process and is specially treated

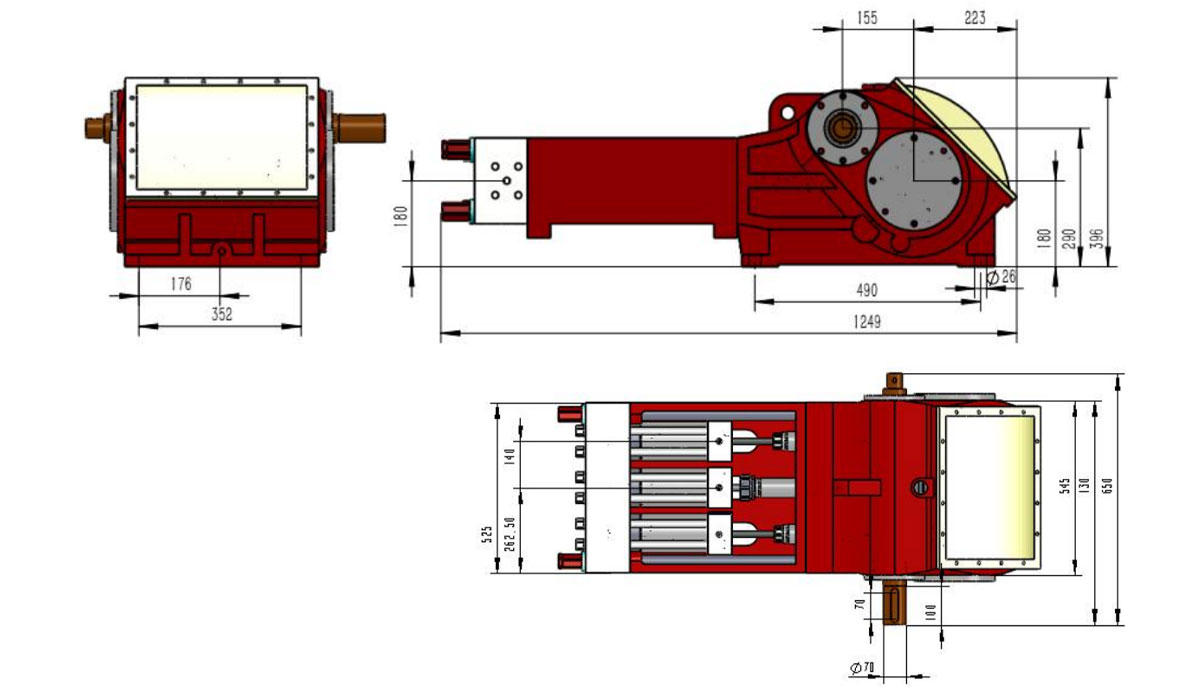

Main dimensions without accessories such as suction line, pressure regulator etc.
Detailed dimensional drawings and weights available on request.
