WHY7500 high pressure water jet pump

WHY7500 high-pressure pumps are built to operate at the continuous maximum duty stated in the performance parameters. Just compare the crankshaft speed,
average plunger speed, plunger diameter, and power rating.

High Pressure Pump
Weight:approx.320KG

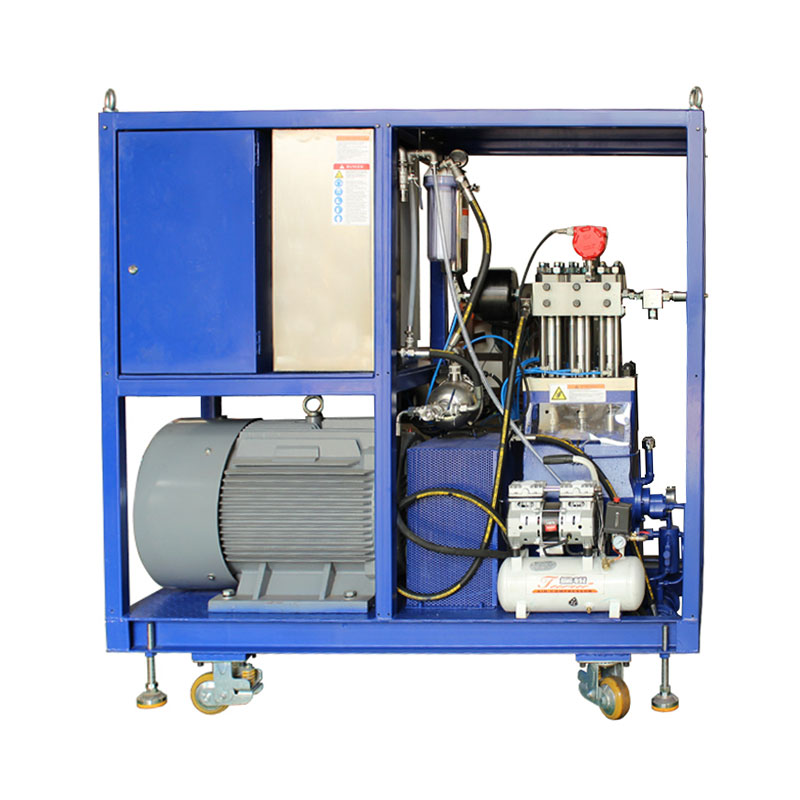

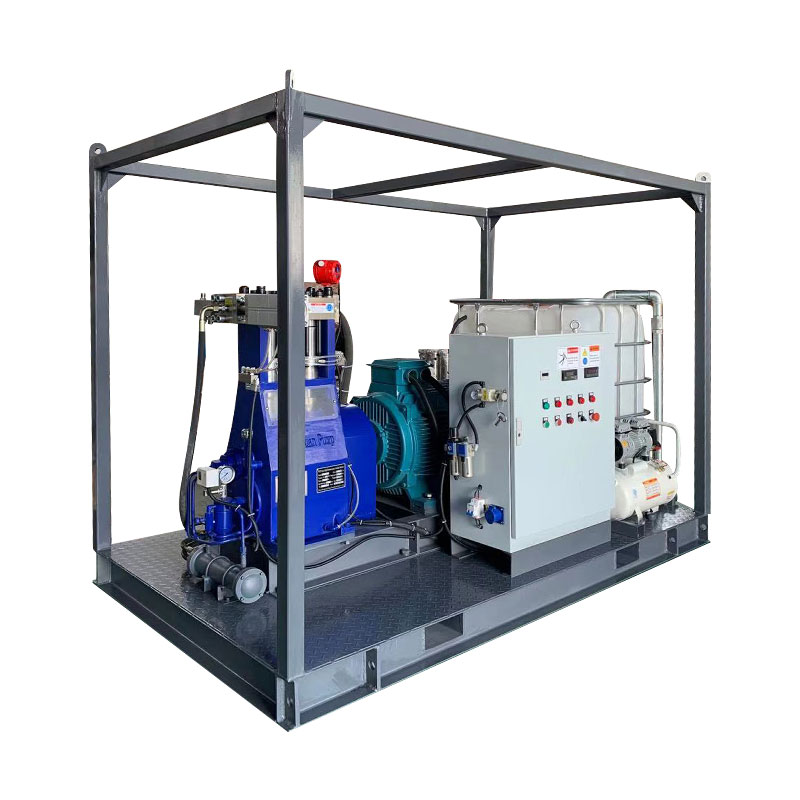

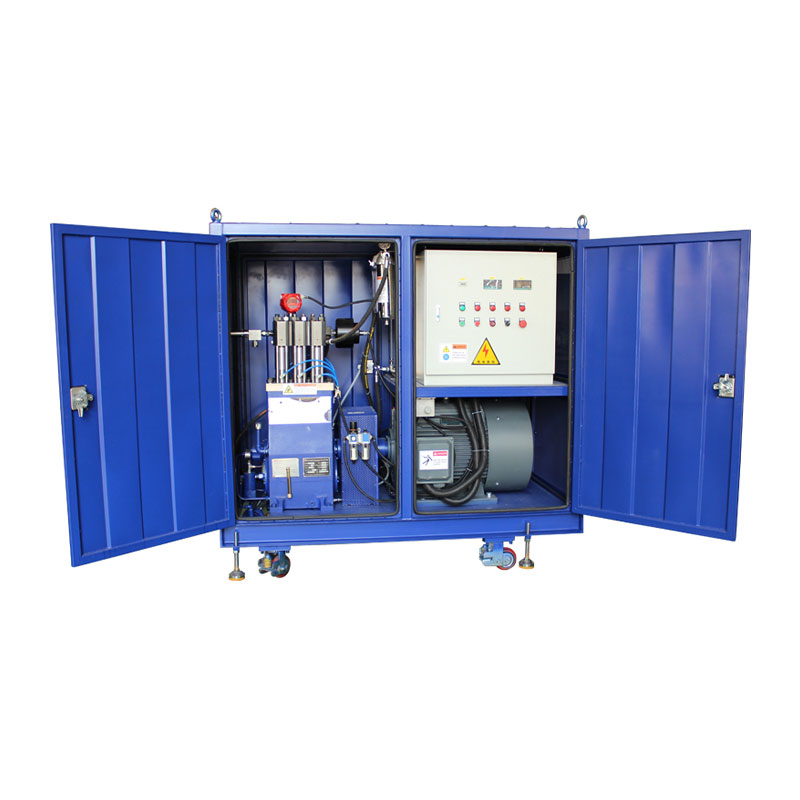

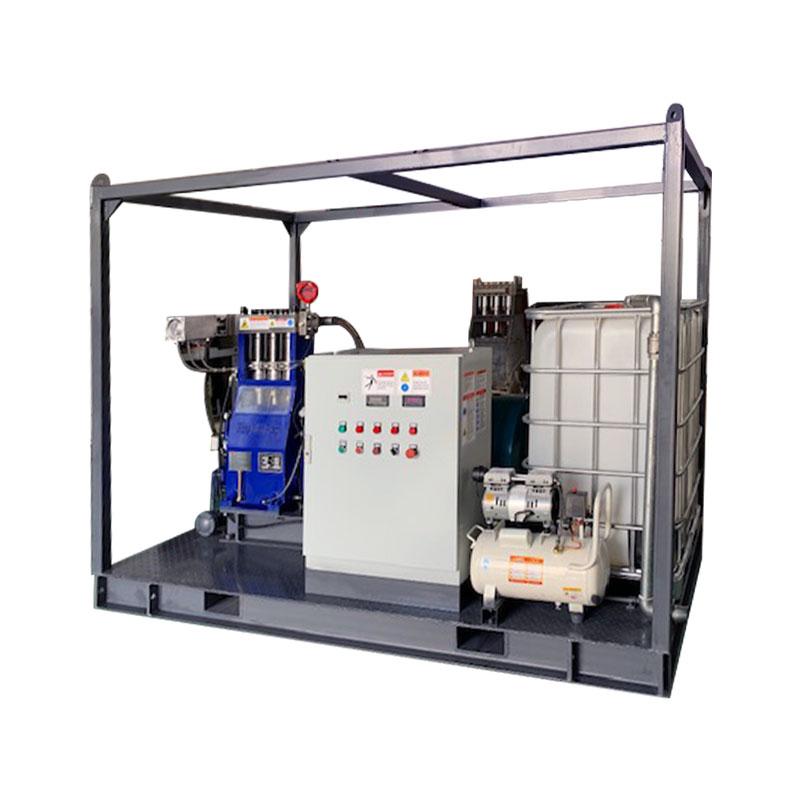

Stationary unit with an electric motor
Length: 1750 mm
Width: 700 mm
Height: 1800 mm

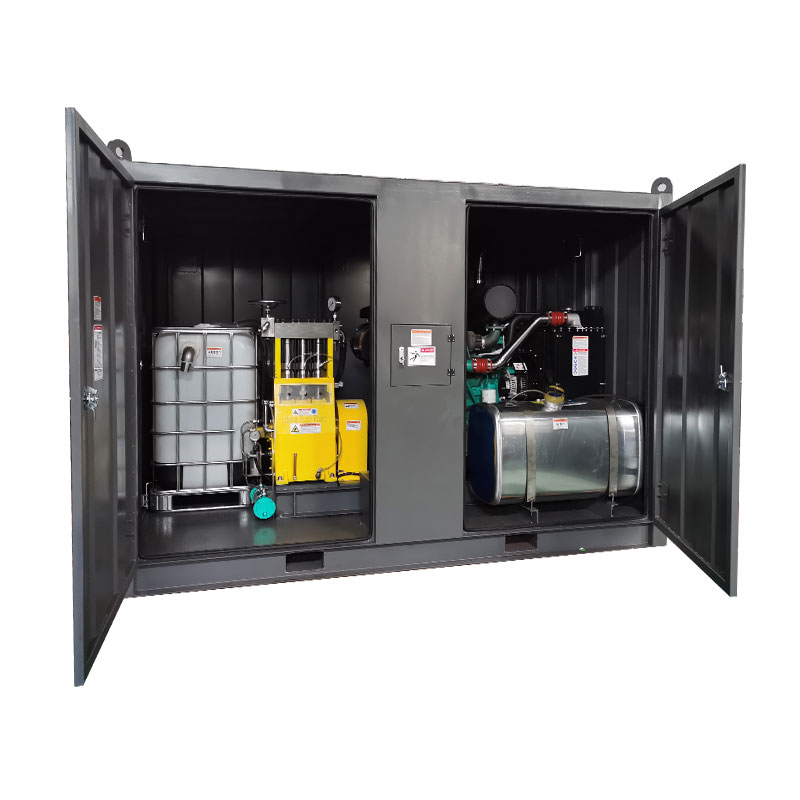

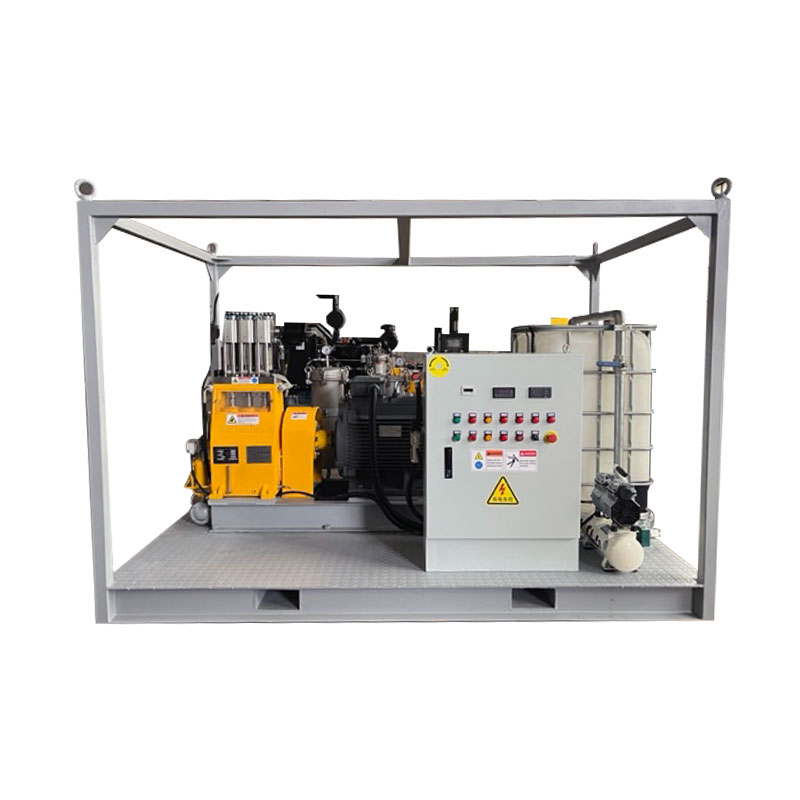

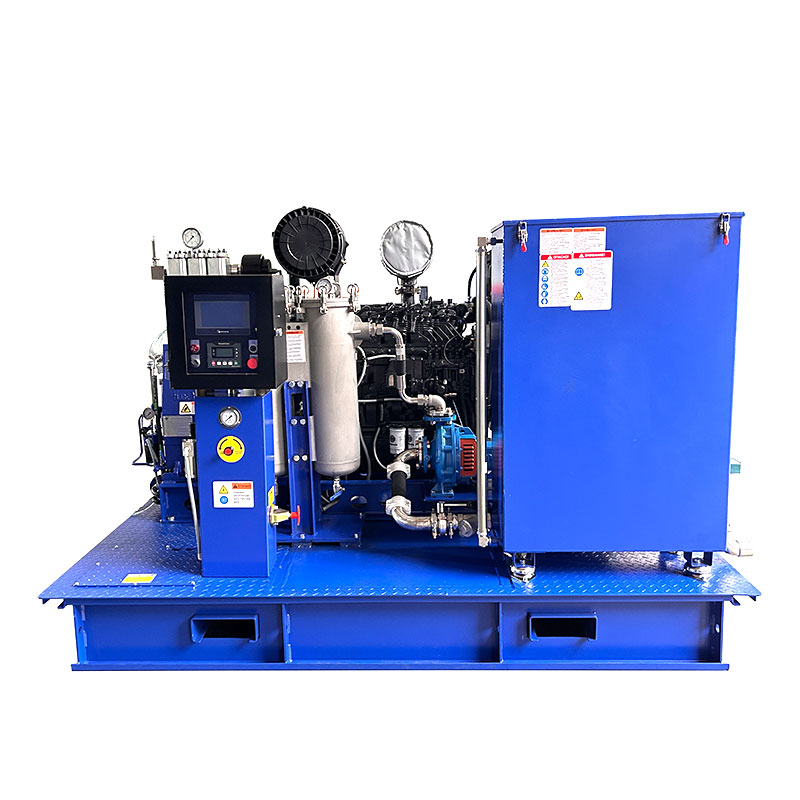

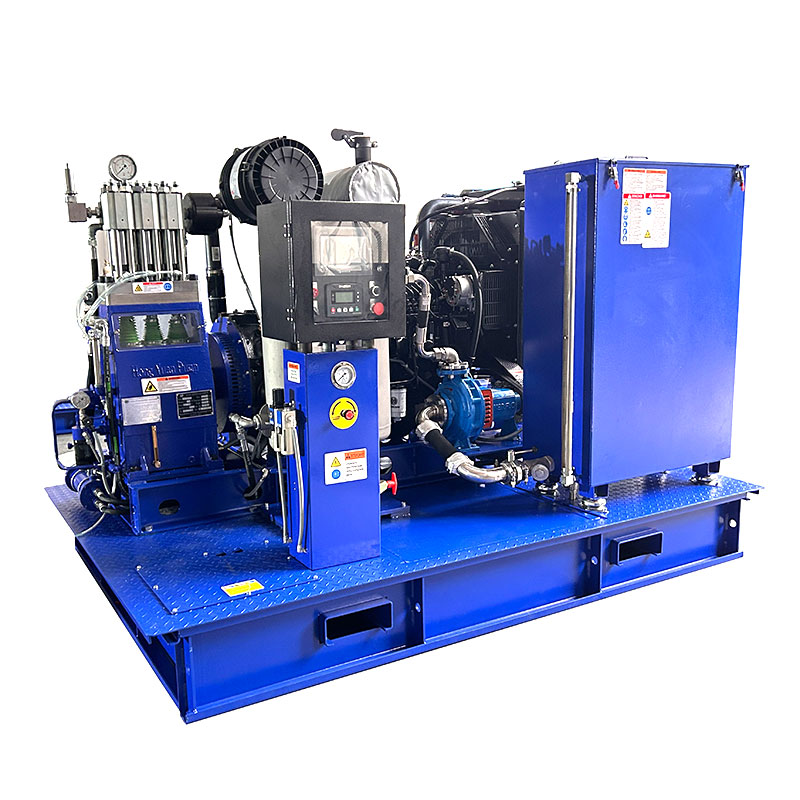

Stationary unit with a diesel engine
Length: 2600mm
Width: 1500 mm
Height: 1800 mm

Features

Power ratings up to 75 kW

Vertical 3-cylinder design

The stainless steel pump head is free of alternating stress

Spring Preload high-pressure sealing makes it longer life

Solid ceramic plunger to ensure high strength and stable operation

An optional plunger cooling system can be used to enhance the seal life

The designed built-in reducer helps to improve transmission efficiency.

Special design of the crankcase magnetic filter

Crankcase splash lubrication

An integrated ball-type liquid inlet valve design greatly improves the efficiency of fluid mechanics.

Computational fluid mechanics design for dynamic load to ensure the highest reliability under maximum duty working conditions.

The crankshaft is made of a high-strength forging process and is specially treated.

Main dimensions without accessories such as suction line, pressure regulator etc.
Detailed dimensional drawings and weights available on request.
