WHY3700 electric high pressure water pump

WHY3700 high-pressure pumps are built to operate at the continuous maximum duty stated in the performance parameters. Just compare the crankshaft speed, average plunger speed, plunger diameter, and power rating.

High-Pressure Pump
Weight: approx. 200 KG

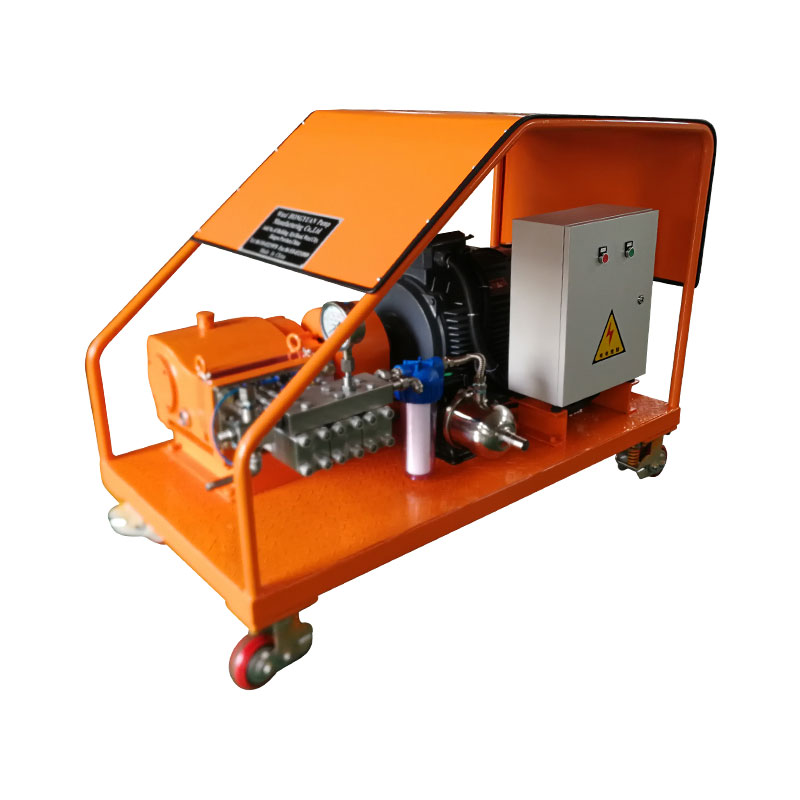

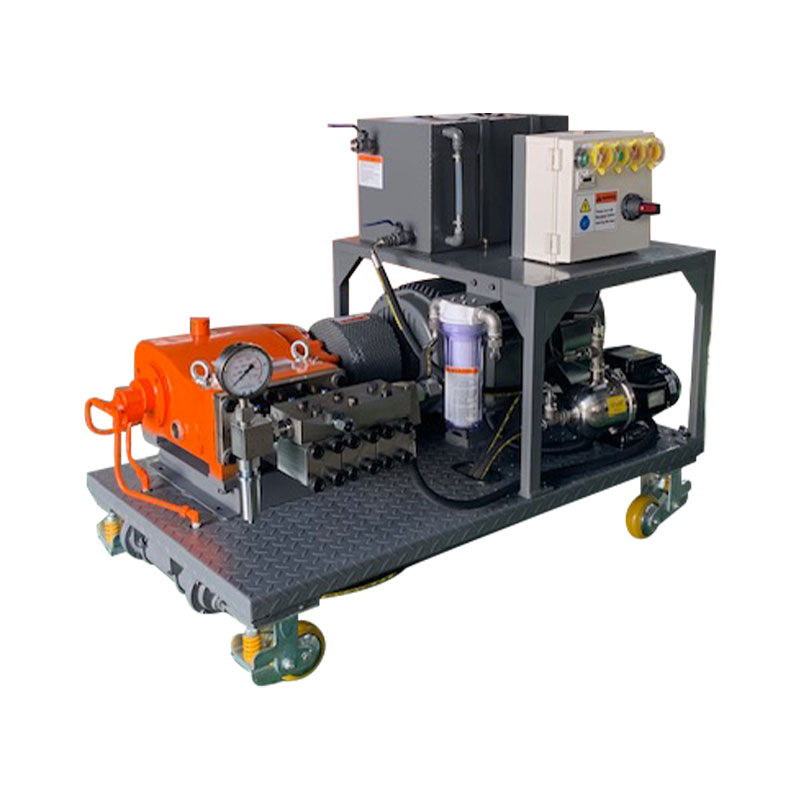

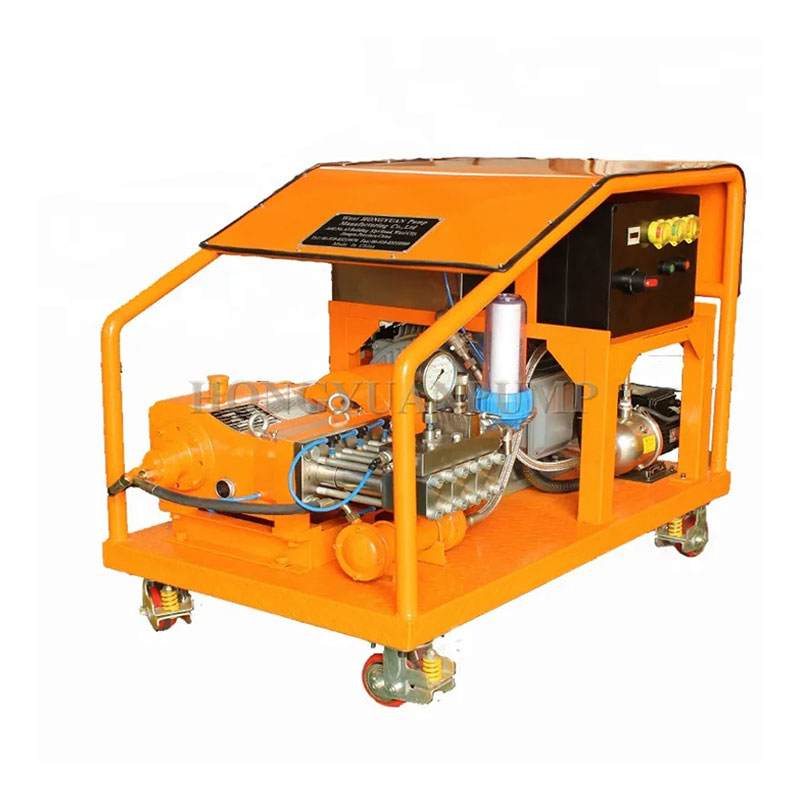

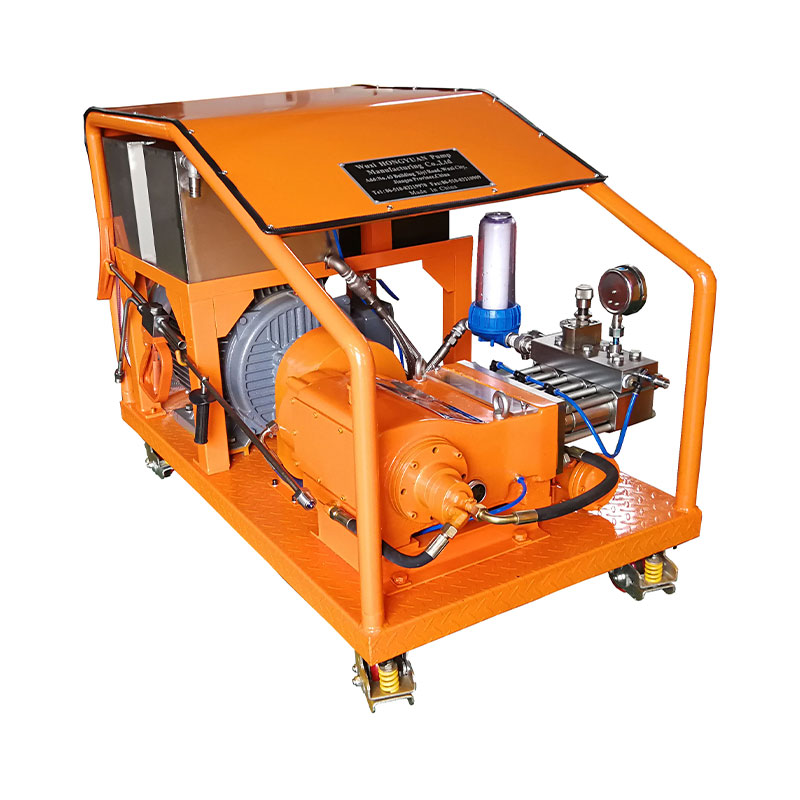

Stationary unit with electric motor
Length: 1300 mm
Width: 900 mm
Height: 1000 mm
Weight: ≈650 kg

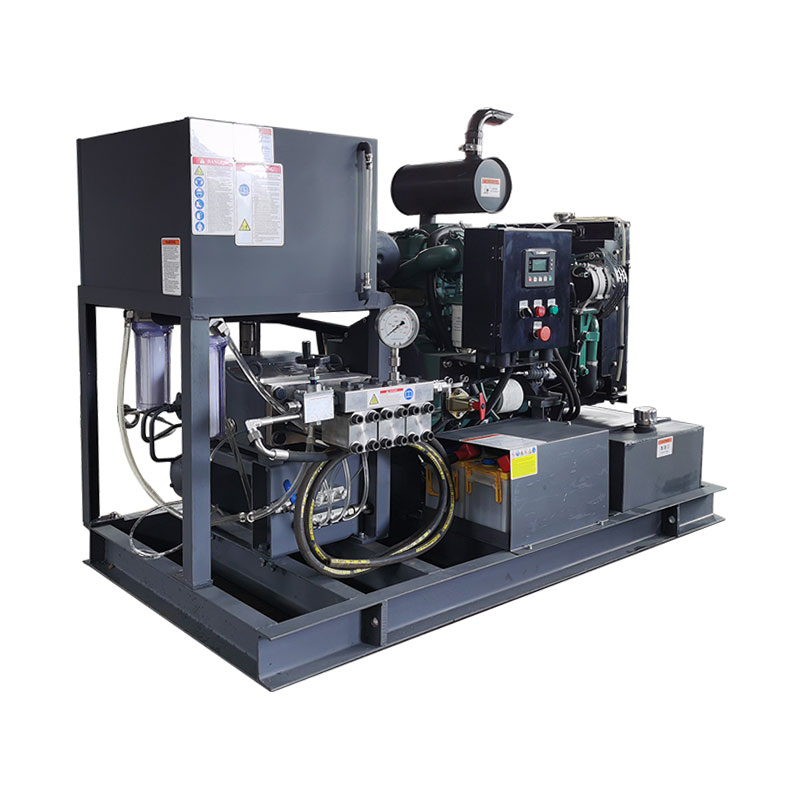

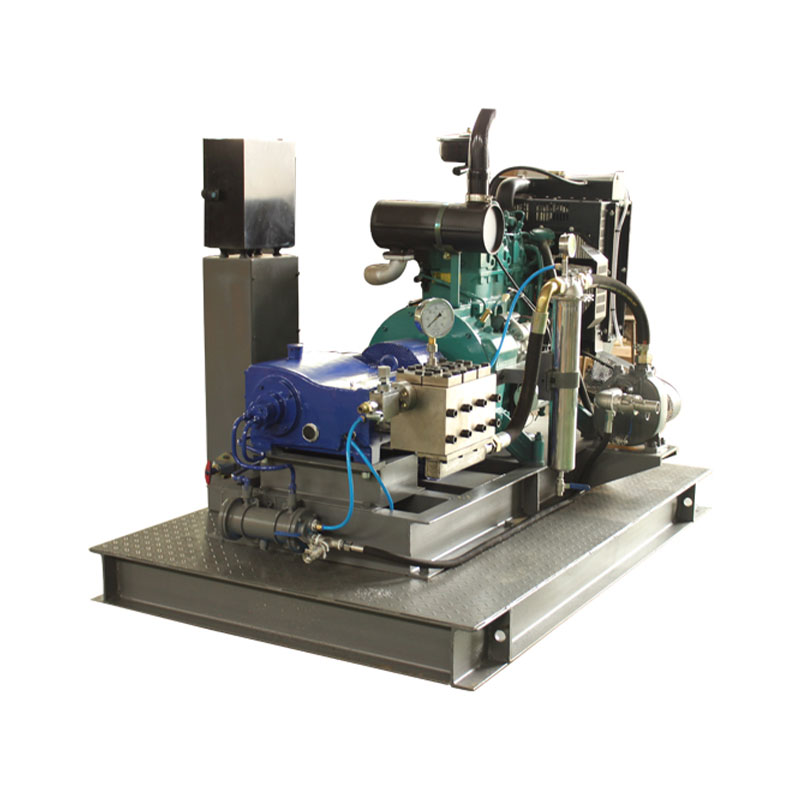

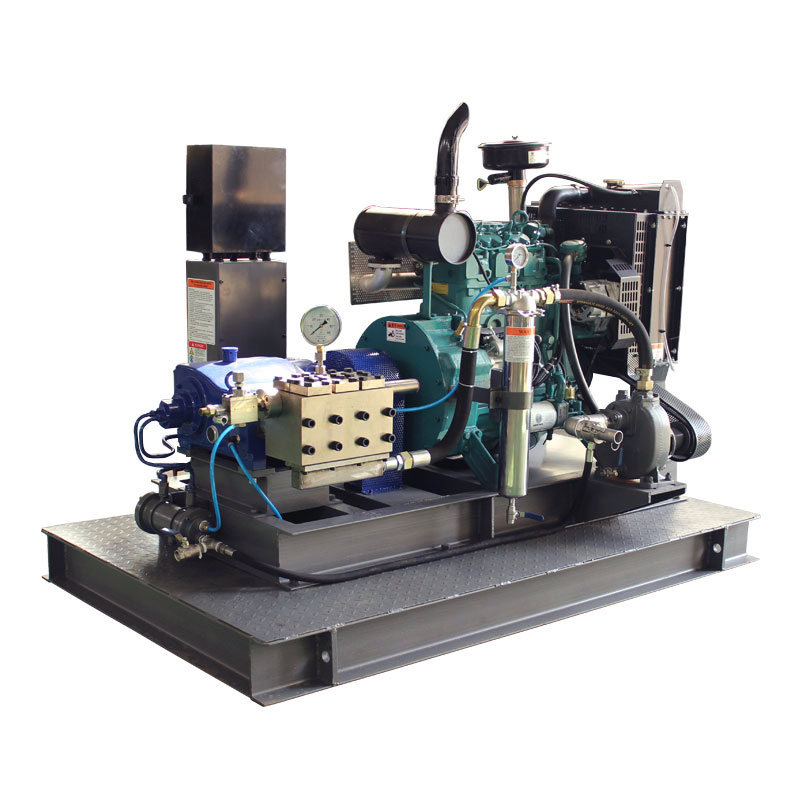

Stationary unit with diesel engine
Length: 1600mm
Width: 1200 mm
Height: 1500 mm
Weight: 850 kg

Features

Power ratings up to 37kw
Horizontal 3-cylinder design
Stainless steel pump head free of alternating stress
Spring preloaded high-pressure sealing make it last longer.
Solid solid ceramic plunger to ensure high strength and stable operation
An optional plunger cooling system can be used to enhance the seal life
The designed built-in reducer helps to improve transmission efficiency.
Special design of the crankcase magnetic filter
crankcase splash lubrication
An integrated ball type liquid inlet valve design greatly improves the efficiency of fluid mechanics.
Computational fluid mechanics design in dynamic load to ensure the highest reliability under max duty working conditions.
The crankshaft is made of a high strength forging process and is specially treated.

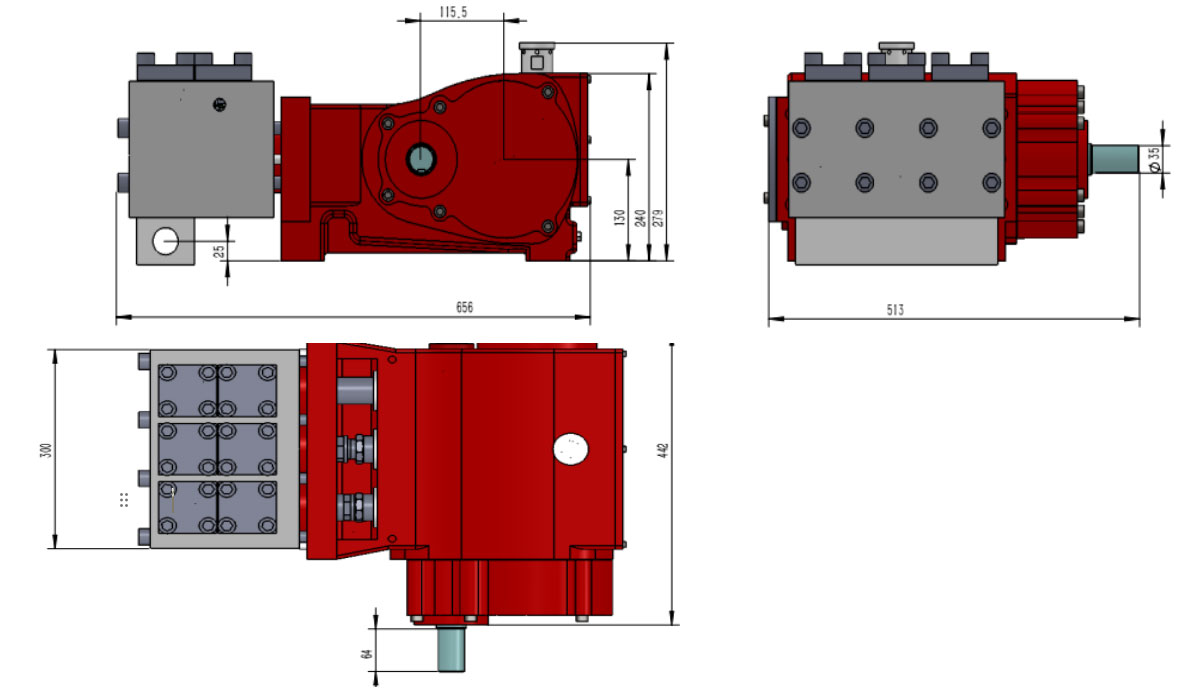

Main dimensions without accessories such as suction line, pressure regulator etc.
Detailed dimensional drawings and weights available on request.
